All-in-one POS (PO4X Series)
Quick spec:
● RAM: 2GB
● Storage: 32GB eMMC
● WiFi: IEEE 802.11 b/g/n
● Bluetooth: Bluetooth 4.0
● Printing speed: 150mm/s
PO4 All-in-one POS is world’s first provides “cloud backup” mini touch Pad POS electrical cash register, bezel free capacitive touch screen, with professional waterproof design and superb user experience.
| Model name | PO4X | |
| Host Configuration | Mainboard | Atom low power consumption industrial control main board |
| Processor | Intel Atom Z3735F,quad-core,up to 1.83GHz | |
| RAM | 2GB | |
| Storage | 32GB eMMC | |
| Battery | 7.4V,3000mA | |
| Power supply | 13.8V 2.5A | |
| Display | Display screen | 10.1″ TFT (1280*800) |
| Touch panel | Capacitive | |
| Customer display | 32*144 dot matrix LCD / 65*132 dot matrix LCD | |
| I/O Port | USB2.0 | 4*USB(shared one with 3G module) |
| Serial port | 2 | |
| Cash drawer port | 1 | |
| LAN port | 1*RJ45 | |
| SD Card | 1*MicroSD card | |
| Options | RFID | mifare reader module |
| iButton | information button | |
| MSR | 3 tracks magnetic reader | |
| Scanner | CCD/CMOS | |
| Smartcard | Contact IC card reader | |
| 3G module | WCDMA module | |
| WiFi | IEEE 802.11 b/g/n | |
| Bluetooth | Bluetooth 4.0 | |
| Printer | Printer | 2″ with cutter/without cutter(57mmxΦ50mm) |
| Printing speed | 150mm/s | |

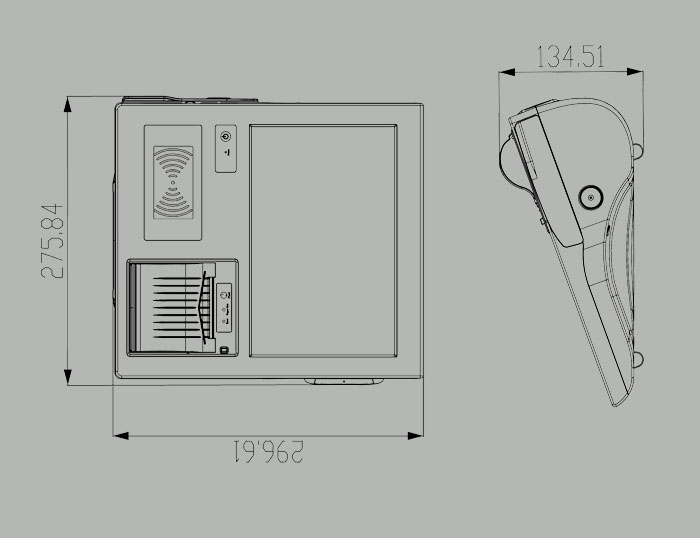

| Dimension | 297mm(L)× 276mm(W) × 135mm(H) | |
| OS | Android/Windows10/Linux | |
- Unique Functions :
World’s first provides “cloud backup” mini touch Pad POS electrical cash register.
World’s unique Pad-POS support 3 OS at the same time: Android/Windows10/Linux.
World’s first All-in-one POS Design: integrating with Touch Screen, Printer,Customer Display*, Magcard reader*, NFC/M1 card reader*,I-Button*, CCD*, GPRS/WCDMA module*, Bluetooth*, WIFI*, etc. (Items marked with * are optional.)
Intel quad-cord processor of high performance and low consumption, ensuring a stable, efficient and safe system operation.
Bezel free capacitive touch screen, with professional waterproof design and superb user experience.
Inbuilt 3Ah UPS, avoiding data loss caused by power shortage. - Excellent Functions :
Embedded with optional POS software meeting various business application demands, such retail, convenient stores, restaurants and supermarkets, etc., it is able to visit remote data base directly through webservice, build chain network and support online upgrade.
10.1” capacitive touch with elegant appearance and full-screen touch experience. Resolution up to 1280*800, making graphical
